Hikvision DS-7716NI-M4/16P — 16-ch 1.5U 16 PoE 8K Network Video Recorder
Availability: In Stock
Hikvision DS-7716NI-M4/16P — 16-ch 1.5U 16 PoE 8K Network Video Recorder
Sale price$1,016.00
Choose options
Hikvision DS-7716NI-M4/16P — 16-ch 1.5U 16 PoE 8K Network Video Recorder
Sale price$1,016.00

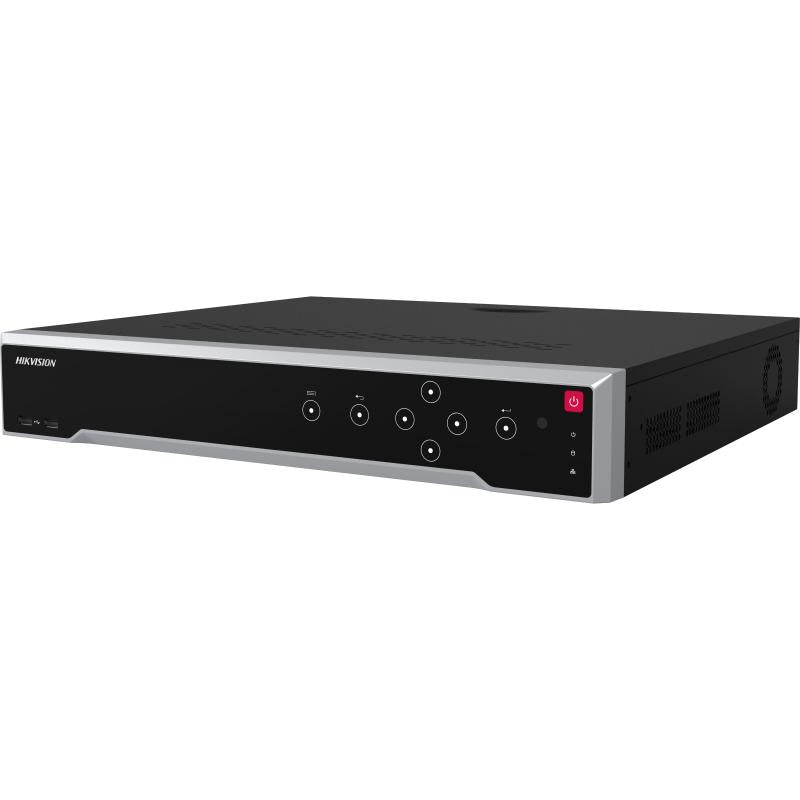

The Hikvision DS-7716NI-M4/16P is a 16-ch 1.5U 16 PoE 8K Network Video Recorder, built for reliable IP video surveillance across 16 channels with 16 built-in PoE ports for true plug-and-play camera deployment. It pairs efficient H.265+/H.265 compression with smooth live view and playback, making it a solid choice for homes, retail sites and commercial installations.
Key Features
- H.265+/H.265/H.264+/H.264 video compression formats
- Up to 16-ch IP camera inputs, up to 32 MP resolution
- Up to 40 x 1080p @ 30fps decoding capacity
- Up to 256 Mbps incoming bandwidth
- Dual HDMI outputs — HDMI1 up to 8K (7680 x 4320)/30Hz
- 16 PoE ports, 4 HDD bays plus 1 eSATA interface
- Up to 8-ch IP speakers can be connected
Dimensions & Weight
| Product Dimensions (W x D x H) | 445 x 400 x 75 mm (17.5" x 15.7" x 3.0") |
| Net Weight | ≤ 5 kg (without HDD) |
| HDD Bays | 4 bays, up to 16 TB per disk |
Full Specifications
| Video And Audio | |
| IP Video Input | 16-ch, up to 32 MP resolution (up to 8-ch 32/24/16 MP inputs) |
| Incoming Bandwidth | 256 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI 1 Output | 8K (7680x4320)/30Hz, 4K (3840x2160)/60Hz, 4K/30Hz, 2K (2560x1440)/60Hz, 1920x1080/60Hz |
| HDMI 2 Output | 4K (3840x2160)/60Hz, 4K/30Hz, 2K (2560x1440)/60Hz, 1920x1080/60Hz (max 1080p when HDMI1 is 8K) |
| VGA Output | 1920x1080/60Hz |
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), PAL: 704x576, NTSC: 704x480 |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding | |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 32MP/24MP/16MP/12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-ch |
| Decoding Capability | 2-ch@32MP, 3-ch@24MP, 4-ch@16MP, 6-ch@12MP, 10-ch@8MP, 13-ch@6MP, 16-ch@5MP (all @30fps) |
| Dual-Stream Recording | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Network | |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF (v2.2), OTAP |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Camera Access Protocol | ONVIF (v2.5), RTSP |
| PoE | |
| Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 200 W |
| Standard | IEEE 802.3 af/at |
| RAID | |
| RAID Type | N/A |
| Auxiliary Interface | |
| eSATA | 1 eSATA interface |
| SATA | 4 SATA interfaces |
| Capacity | Up to 16 TB capacity for each disk |
| Serial Interface | 2 RS-485 (half-duplex), 1 RS-232 |
| USB Interface | Front panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0 |
| Alarm In/Out | 16/9 |
| Ctrl 12V / DC 12V | Controllable 12 VDC, 1 A power output for external alarm device |
| General | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 15 W (without HDD and PoE off) |
| Working Temperature | -10 to 55 °C (14 to 131 °F) |
| Working Humidity | 10% to 90% |
| Chassis | 19-inch rack-mounted 1.5U chassis |
| Dimension (W x D x H) | 445 x 400 x 75 mm (17.5" x 15.7" x 3.0") |
| Weight | ≤ 5 kg (without HDD) |
| Certification | |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| CE | EN 55032:2015+A1:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020 |
| Cyber Security | |
| EN 303645 | Support |
| Secure Boot / Secure Component Verification | Support |
| Password Protection / IP & MAC Address Filtering | Support |
| HTTPS Encryption / Stream Encryption | Support (AES128) |
| IEEE802.1X (EAP-TLS) / Signed Firmware | Support |
Specifications sourced from Hikvision's official global product page for the DS-7716NI-M4/16P. Sold as a base unit — hard disk drive(s) not included unless stated. Specifications are subject to change by the manufacturer without notice.
