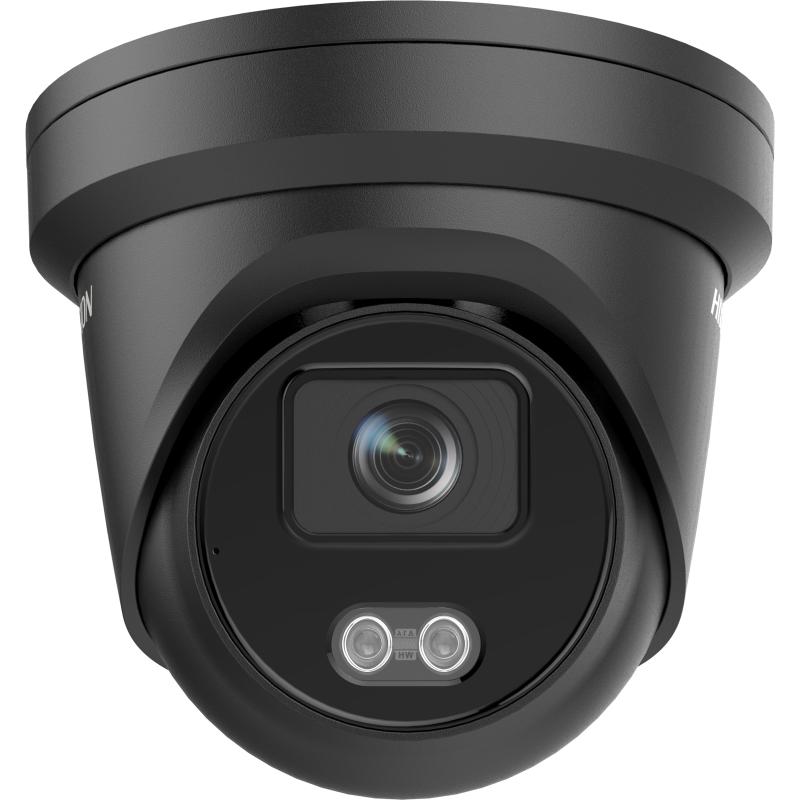

The Hikvision DS-2CD2347G2-LU is a 4 MP ColorVu Fixed Turret Network Camera, delivering 4 MP resolution IP video surveillance in a compact turret form factor. It combines Hikvision's AcuSense deep-learning analytics with efficient H.265+ compression for accurate human/vehicle detection and reduced false alarms, making it a strong choice for homes, retail sites and commercial perimeter installations.
Hikvision's current shipping variant is the DS-2CD2347G2-LU (C); the base (non-C) part is marked discontinued globally but this listing uses the current (C) specifications and imagery.
Key Features
- 24/7 full-color imaging with F1.0 large aperture and high-performance sensor
- Efficient H.265+ compression technology
- Clear imaging against strong backlight due to 130 dB WDR technology
- Built-in microphone for real-time audio security
- Focus on human and vehicle target classification based on deep learning (AcuSense)
- Water and dust resistant (IP67)
- Smart white-light supplement, effective up to 30 m
Dimensions & Weight
| Camera Type | Turret |
| Product Dimensions | Ø138.3 mm × 125.2 mm (Ø5.4" × 4.9") |
| Net Weight | Approx. 750 g (1.7 lb.) |
Full Specifications
| Camera | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Focal Length & FOV | 2.8 mm: H112°/V61°/D134° · 4 mm: H95°/V51°/D115° · 6 mm: H58°/V31°/D69° |
| Lens Mount | M16 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth Of Field | 2.8 mm: 2.5 m to ∞ · 4 mm: 3.5 m to ∞ · 6 mm: 7.5 m to ∞ |
| DORI | |
| DORI Distance | 2.8 mm: D58/O23/R11/I6 m · 4 mm: D77/O30/R15/I7 m · 6 mm: D115/O45/R23/I11 m |
| Illuminator | |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| Video | |
| Main Stream | 50 Hz: 25 fps (2688×1520, 1920×1080, 1280×720) · 60 Hz: 30 fps (same resolutions) |
| Sub-Stream | 50 Hz: 25 fps · 60 Hz: 30 fps (1280×720, 640×480, 640×360) |
| Third Stream | 10 fps (1920×1080, 1280×720, 640×480, 640×360) |
| Video Compression | H.265/H.264/H.264+/H.265+ (main); H.265/H.264/MJPEG (sub); H.265/H.264 (third) |
| Wide Dynamic Range (WDR) | 130 dB |
| Audio | |
| Built-In Microphone | Yes (-U) |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, G, T), ISAPI, SDK |
| User/Host | Up to 32 users, 3 user levels |
| Security | Password protection, HTTPS encryption, IP address filter, Security Audit Log, TLS 1.1/1.2, digest authentication |
| Network Storage | MicroSD/SDHC/SDXC card, up to 512 GB; NAS (NFS, SMB/CIFS) |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, up to 512 GB |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (human/vehicle classification), video tampering alarm, exception |
| Smart Event | Line crossing detection, intrusion detection, region entrance/exiting detection, scene change detection |
| Linkage | Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email |
| General | |
| Power | 12 VDC ± 25%, 0.55 A, max. 6.6 W, Ø5.5 mm coaxial power plug; PoE: 802.3af Class 3, 36–57 V, max. 7.6 W |
| Dimension | Ø138.3 mm × 125.2 mm (Ø5.4" × 4.9") |
| Weight | Approx. 750 g (1.7 lb.) |
| Working Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working Humidity | 95% or less (non-condensing) |
| Ingress/Protection | IP67 water and dust resistant |
| Approval | |
| EMC | FCC SDoC (47 CFR Part 15B), CE-EMC (EN 55032:2015), RCM (AS/NZS CISPR 32:2015), IC VoC, KC |
| Safety | UL (UL 60950-1), CB, CE-LVD |
Specifications sourced from Hikvision's official global product page for the DS-2CD2347G2-LU. Actual product appearance and specifications may vary by variant (lens option, mic, colour). Specifications are subject to change by the manufacturer without notice.
