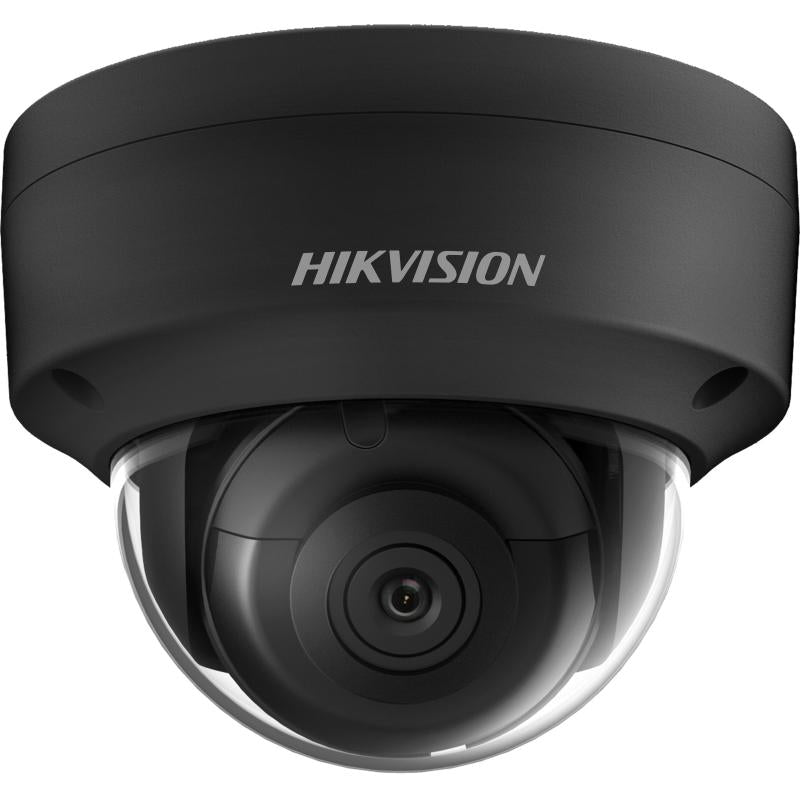

Hikvision DS-2CD2143G2-IS — 4 MP AcuSense Fixed Dome Network Camera
Availability: In Stock
Hikvision DS-2CD2143G2-IS — 4 MP AcuSense Fixed Dome Network Camera
Sale price$229.00
Choose options
Hikvision DS-2CD2143G2-IS — 4 MP AcuSense Fixed Dome Network Camera
Sale price$229.00
The Hikvision DS-2CD2143G2-IS is a 4 MP AcuSense Fixed Dome Network Camera, delivering 4 MP resolution IP video surveillance in a compact dome form factor. It combines Hikvision's AcuSense deep-learning analytics with efficient H.265+ compression for accurate human/vehicle detection and reduced false alarms, making it a strong choice for homes, retail sites and commercial perimeter installations.
Key Features
- High quality imaging with 4 MP resolution
- Clear imaging against strong backlight due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Water and dust resistant (IP67) and vandal resistant (IK10)
- Focus on human and vehicle target classification based on deep learning (AcuSense)
- Built-in two-way audio and alarm I/O on -S variant
- Compact, discreet dome housing suited to eaves, hallways and shopfronts
Dimensions & Weight
| Camera Type | Dome |
| Product Dimensions | Ø110.8 × 84.7 mm (Ø4.4″ × 3.3″) |
| Net Weight | Approx. 530 g (1.2 lb.) |
Full Specifications
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Lens | |
| Lens Type | Fixed focal length, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm: H103°/V55°/D122° · 4 mm: H84°/V45°/D100° |
| Lens Mount | M12 |
| Aperture | F1.6 |
| Iris Type | Fixed |
| DORI | |
| DORI Distance | 2.8 mm: D67/O26/R13/I6 m · 4 mm: D80/O31/R16/I8 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| IR Wavelength | 850 nm |
| Smart Supplement Light | Yes |
| Video | |
| Main Stream | 50 Hz: 25 fps (2688×1520, 1920×1080, 1280×720) · 60 Hz: 30 fps (same resolutions) |
| Video Compression | H.265/H.264/H.264+/H.265+ (main); H.265/H.264/MJPEG (sub); H.265/H.264 (third) |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | Yes |
| Region Of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Wide Dynamic Range (WDR) | 120 dB |
| Audio | |
| Audio I/O | -S: 1 line-in, 1 line-out, two-core terminal block, mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Environment Noise Filtering | Yes |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, G), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket |
| User/Host | Up to 32 users, 3 user levels |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Built-in microSD, up to 512 GB |
| Alarm | -S: 1 input, 1 output (max. 12 VDC, 30 mA) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (human/vehicle classification), video tampering alarm, exception |
| Smart Event | Line crossing detection, intrusion detection (human/vehicle), face detection |
| Linkage | Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, email, trigger alarm output (-S) |
| General | |
| Power | 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug; PoE: 802.3af Class 3, max. 6.5 W |
| Dimension | Ø110.8 × 84.7 mm (Ø4.4″ × 3.3″) |
| Weight | Approx. 530 g (1.2 lb.) |
| Working Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working Humidity | 95% or less (non-condensing) |
| Ingress/Protection | IP67 water/dust resistant, IK10 vandal resistant |
| Approval | |
| EMC/Safety | CE, FCC, UL, IC, KC (per current Hikvision Pro Series compliance) |
Specifications sourced from Hikvision's official global product page for the DS-2CD2143G2-IS. Actual product appearance and specifications may vary by variant (lens option, mic, colour). Specifications are subject to change by the manufacturer without notice.
