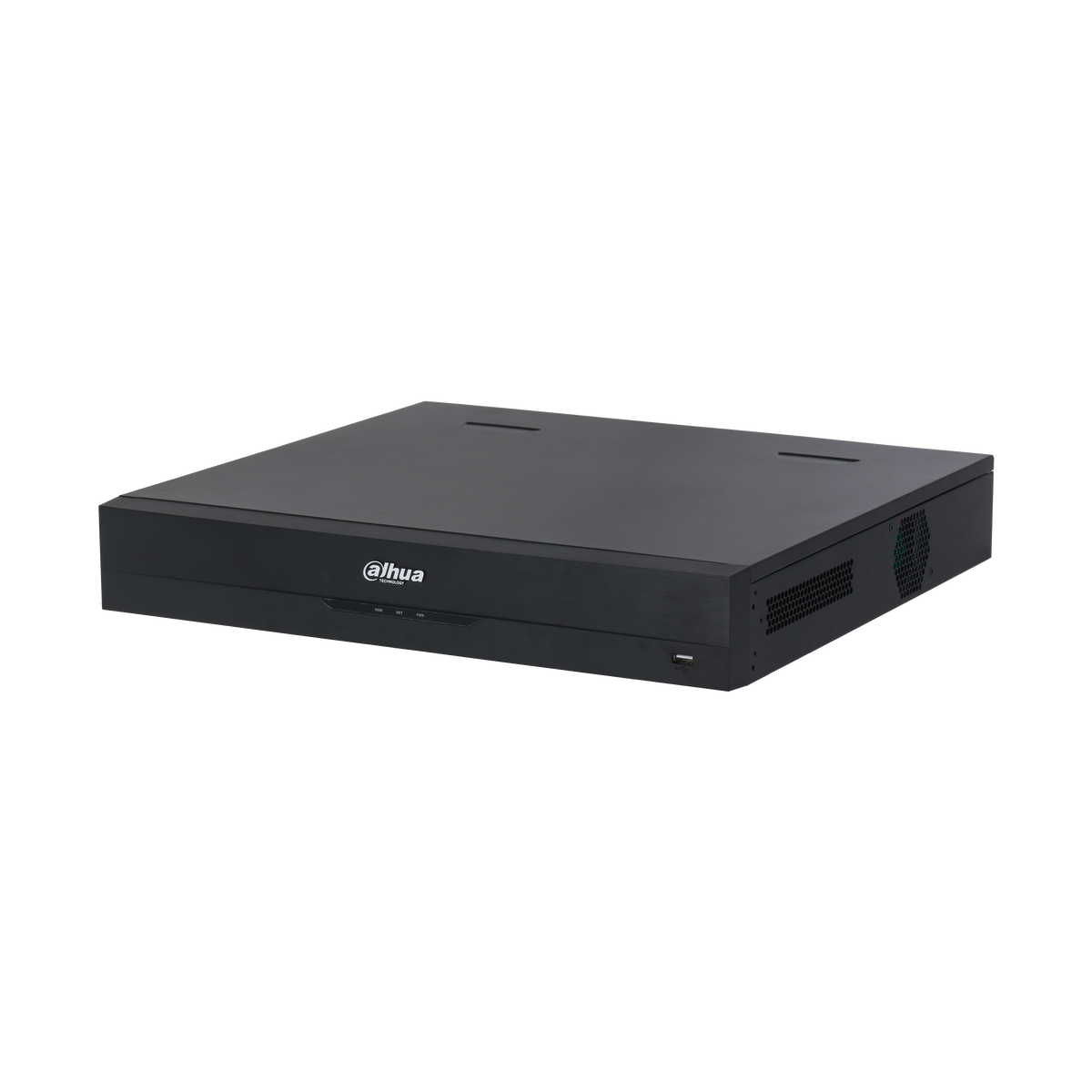

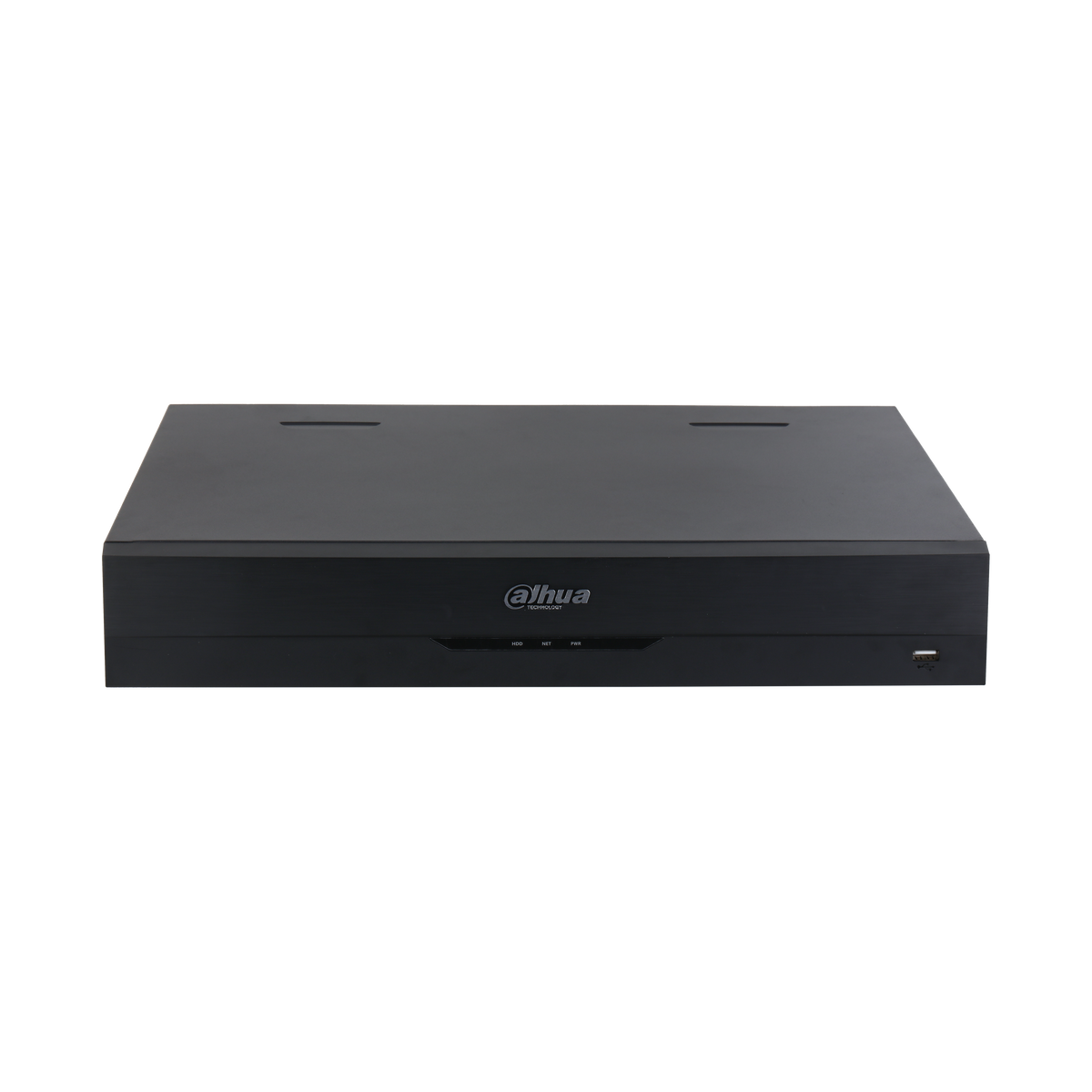

Dahua NVR5464-AI/ANZ-S2 — 64 Channels 1.5U 4HDD WizSense Network Video Recorder (No PoE)
Availability: In Stock
Dahua NVR5464-AI/ANZ-S2 — 64 Channels 1.5U 4HDD WizSense Network Video Recorder (No PoE)
Sale price$1,185.00
Choose options
The Dahua NVR5464-AI/ANZ-S2 is a 64 Channels 1.5U 4HDD WizSense Network Video Recorder (No PoE), part of Dahua's WizSense AI series. It combines on-board AI analytics (face detection & recognition, perimeter protection and Smart Motion Detection) across 64 channels with support for IP cameras up to 32 MP, giving installers a capable, easy-to-deploy recorder for homes, retail and commercial sites.
Key Features
- 64-channel WizSense network video recorder supporting IP cameras up to 32 MP
- Built-in AI by Recorder: Face detection; face recognition; perimeter protection; SMD Plus
- AI by Camera support (with compatible Dahua cameras): Face detection/recognition; video metadata; perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map
- Decoding capability: 32x1080p@30fps (self-adaptive)
- Network bandwidth: 384 Mbps in/rec/out (AI disabled)
- No built-in PoE — pair with a separate PoE switch or injector
- Storage: 4 SATA, up to 16 TB each (4 HDD bays, 16 TB per bay)
- Smart H.265+ / H.265 / Smart H.264+ / H.264 compression for efficient storage use
- Remote viewing and management via the Dahua DMSS app (iOS/Android) and web browser
Dimensions & Weight
| Product Dimensions (W x D x H) | 440.0 x 415.1 x 70.0 mm (W x D x H) |
| Net Weight | 4.74 kg |
| Gross Weight | 6.11 kg |
Full Specifications
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AI | |
| AI by Recorder | Face detection; face recognition; perimeter protection; SMD Plus |
| AI by Camera | Face detection/recognition; video metadata; perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map |
| Perimeter Protection | |
| By Recorder (channels) | 4 channels, 10 IVS rules/channel |
| By Camera (channels) | 16 channels |
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| By Recorder (channels) | 2 channels (up to 12 images/s each) |
| By Camera (channels) | 16 channels |
| Face Recognition | |
| Face Database Capacity | Up to 20 databases, 20,000 images, 2.5 GB total |
| Performance by Recorder | 16ch FD(cam)+FR(rec) 16 img/s; 2ch FD+FR(rec) 12 img/s |
| Performance by Camera (channels) | 16 channels |
| SMD Plus | |
| By Recorder (channels) | 8 channels |
| By Camera (channels) | 16 channels |
| Video Metadata | |
| Metadata Performance by Camera | 8 channels |
| Human Attributes | Top colour/type, bottom colour/type, hat, bag, age, gender, umbrella |
| Motor Vehicle Attributes | Plate, plate colour, vehicle body, model, logo, calling, seatbelt, interior, registration location |
| Non-motor Vehicle Attributes | Vehicle model, colour, number of persons, helmet |
| Video Metadata / ANPR | |
| ANPR by Camera (channels) | 8 channels |
| License Plate Database | Up to 20,000 plates; blocklist and allowlist |
| Audio & Video | |
| Access Channel | 64 |
| Network Bandwidth (AI off) | 384 Mbps in/rec/out |
| Network Bandwidth (AI on) | 200 Mbps in/rec/out |
| Max Camera Resolution Supported | 32 MP |
| Decoding Capability (AI off, headline) | 32x1080p@30fps (self-adaptive) |
| Video Output | 2 HDMI (4K) + 2 VGA |
| Multi-screen Display | Main 1/4/8/9/16/25/36/64; Sub 1/4/8/9/16 |
| Resolution List | 32/24/16/12/8/5/4MP;1080p;720p;D1;CIF;QCIF |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha/Samsung |
| Compression | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G.726 |
| Network | |
| Mobile Phone Access | iOS; Android (DMSS) |
| Interoperability | ONVIF 21.12 (Profile T/S/G); CGI; SDK |
| Browser Support | Chrome; IE9+/Edge; Firefox |
| Recording & Playback | |
| Multi-channel Playback | Up to 16 |
| Record Mode | General; motion detection; intelligent; alarm |
| Backup Method | USB device and network |
| Playback Mode | Instant, general, event, tag, smart playback |
| Storage | |
| Disk Group | Yes |
| RAID Support | — (not listed on official spec page) |
| Alarm | |
| General Alarm | Motion detection; privacy masking; video loss/local alarm; scene changing; PIR; IPC external alarm |
| Anomaly Alarm | Disk/storage error; disk full/low space; network disconnection; IP/MAC conflict; camera offline; video tampering; login lock; fan abnormal; cybersecurity exception |
| Intelligent Alarm | Face detection/recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map (+ video metadata/ANPR/crowd/vehicle density on 5-Series) |
| Alarm Linkage | Record; snapshot; alarm output; audio; buzzer; log; preset; email |

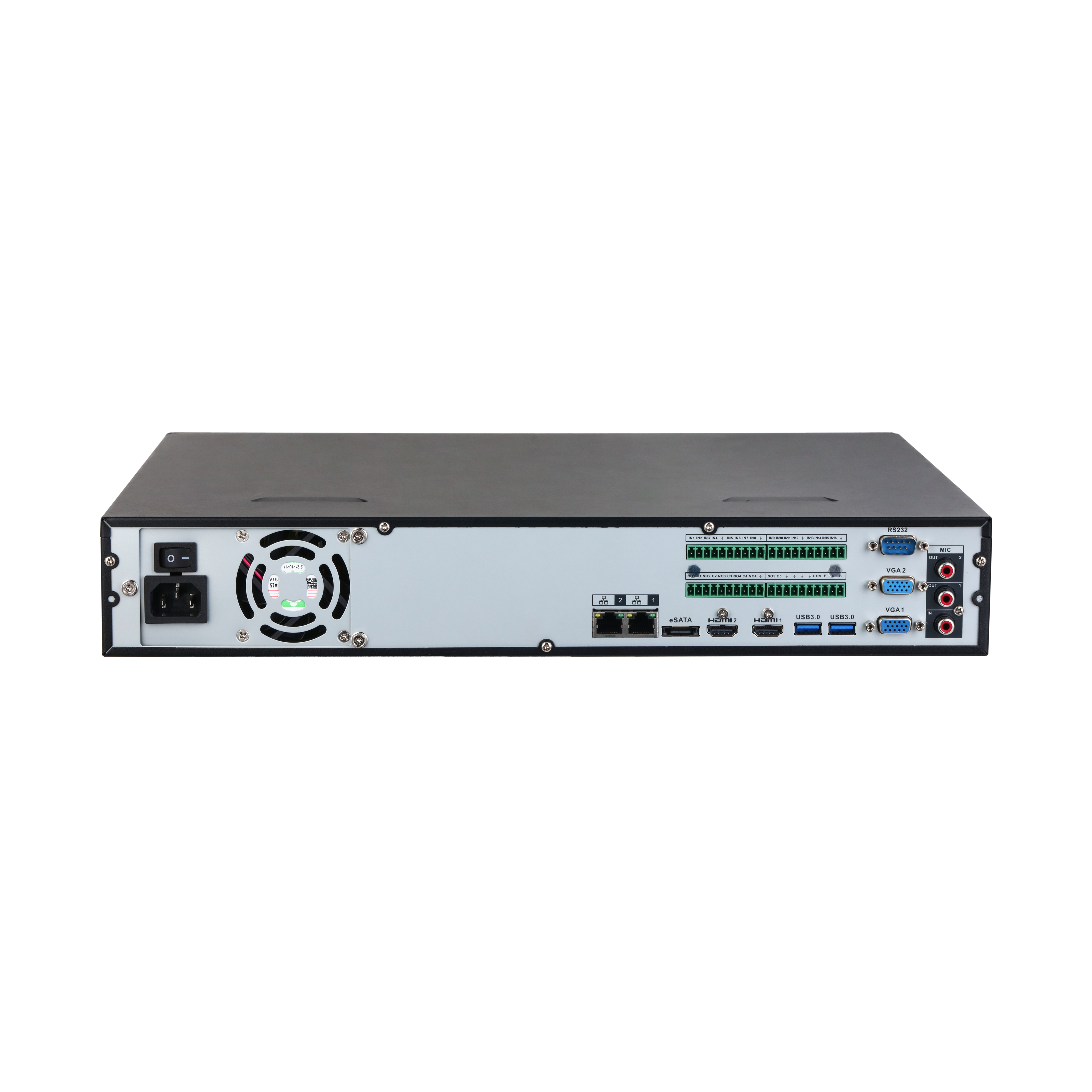

| Ports | |
| Audio Input / Output | 1-ch RCA / 2-ch RCA |
| Alarm In / Out | 16 / 6 |
| Disk / HDD Interface | 4 SATA, up to 16 TB each |
| eSATA | 1 |
| RS-232 / RS-485 | 1 / 1 |
| USB | 3 (1 front USB2.0, 2 rear USB3.0) |
| HDMI / VGA | 2 / 2 |
| Network Port | 2x RJ-45 10/100/1000 Mbps |
| PoE Ports | None (No PoE model) |
| General / Power | |
| Power Supply | 100-240 VAC, 50-60 Hz (internal) |
| Power Consumption / PoE Budget | <=13 W (no HDD); No PoE |
| Net Weight | 4.74 kg |
| Gross Weight | 6.11 kg |
| Product Dimensions (W x D x H) | 440.0 x 415.1 x 70.0 mm (W x D x H) |
| Packaging Dimensions | 530.0 x 500.0 x 210.0 mm (W x D x H) |
| Operating Temperature | -10C to +55C (14F to 131F) |
| Storage Temperature | -20C to +60C (-4F to 140F) |
| Operating Humidity | 10%-93% RH, non-condensing |
| Installation | Rack or desktop |
| Certifications | FCC 47 CFR Part15 Subpart B Class A; CE-EMC (EN55032/EN61000-3-2/3/EN55035/EN50130-4); CE-LVD EN62368-1 |
Specifications sourced from Dahua's official Oceania product page for the NVR5464-AI/ANZ-S2. Sold as a base unit — hard disk drive(s) not included unless stated. Specifications are subject to change by the manufacturer without notice.
