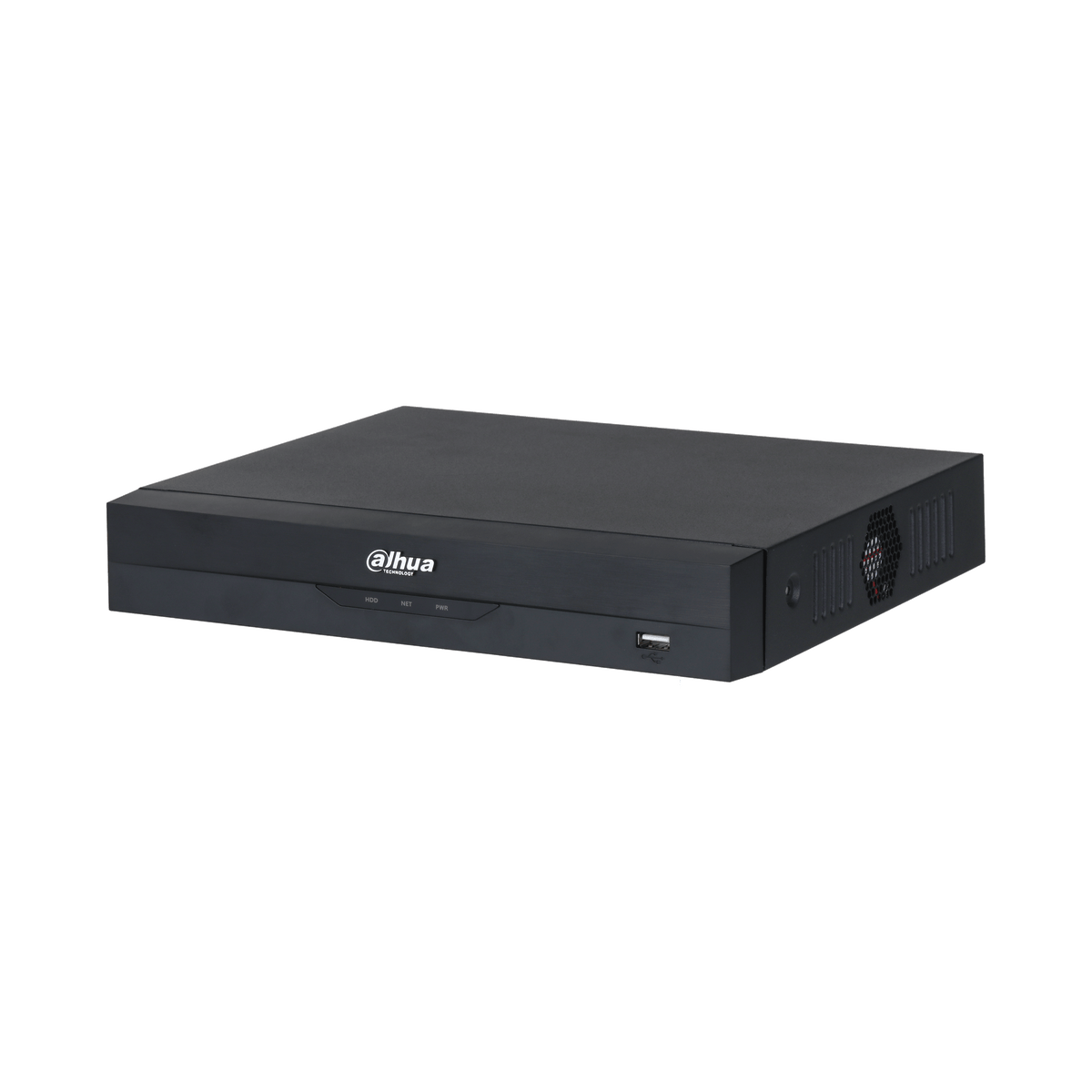

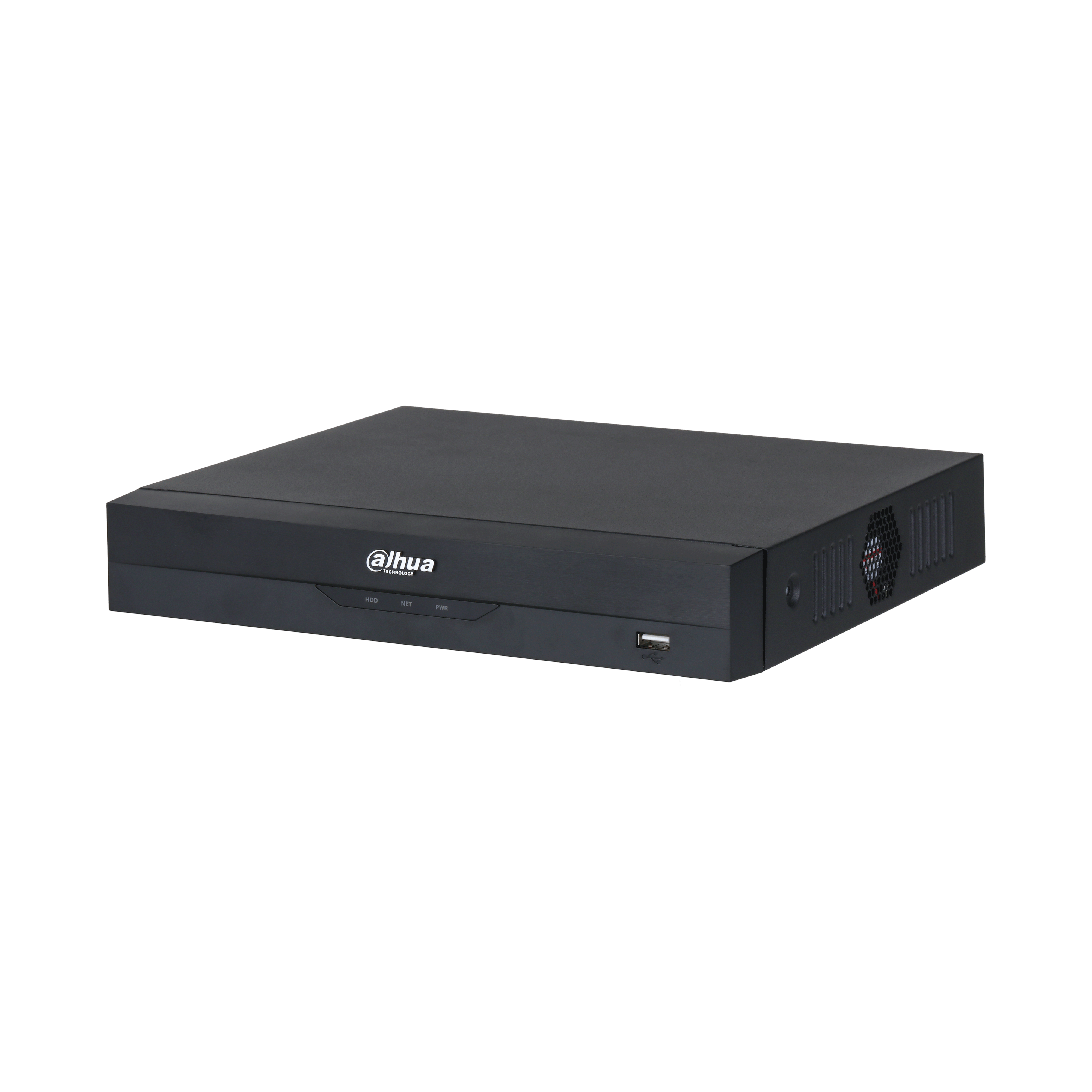

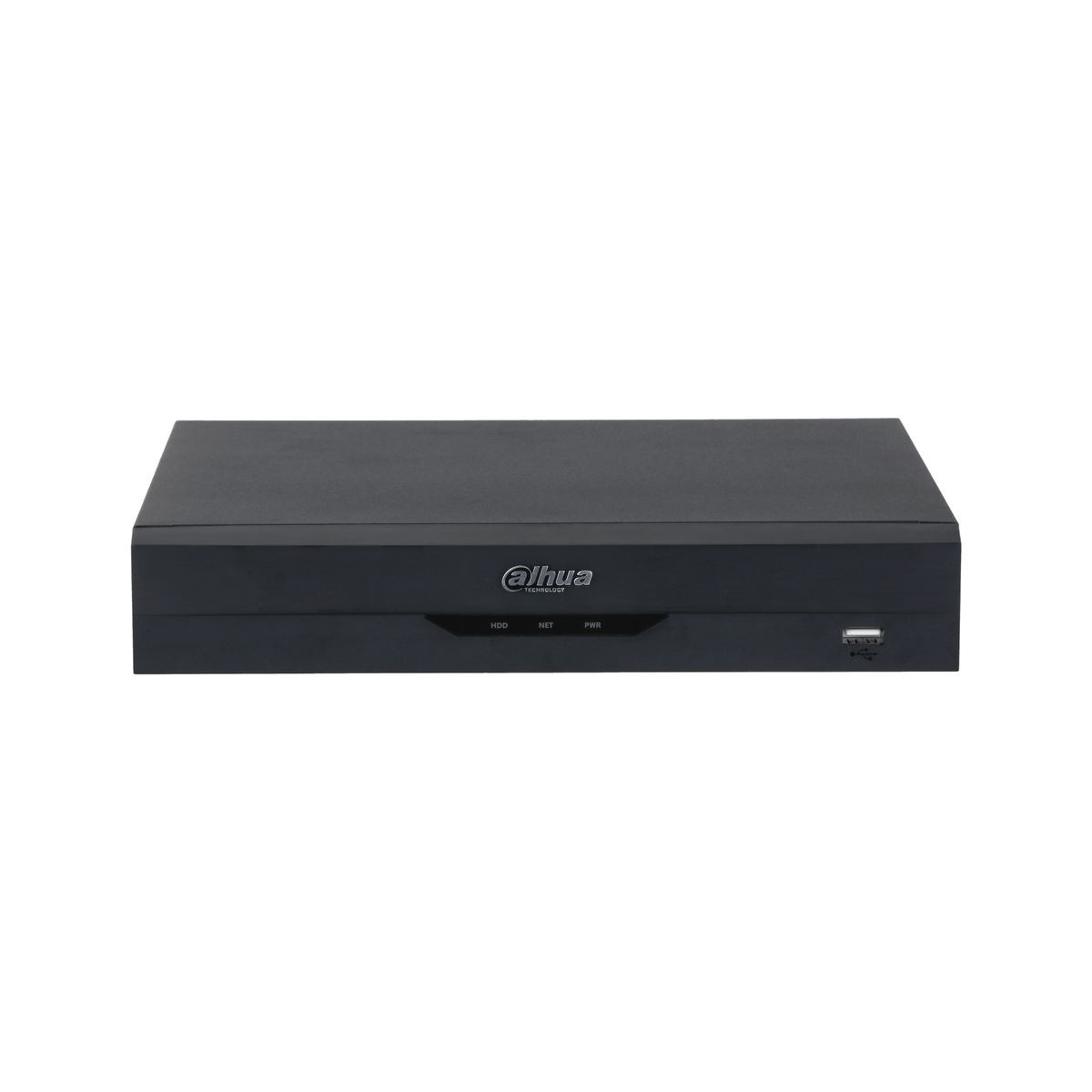

Dahua NVR4108HS-8P-AI/ANZ — 8CH Compact 1U 8PoE 1HDD WizSense Network Video Recorder
Availability: In Stock
Dahua NVR4108HS-8P-AI/ANZ — 8CH Compact 1U 8PoE 1HDD WizSense Network Video Recorder
Sale price$289.00
Choose options
The Dahua NVR4108HS-8P-AI/ANZ is a 8CH Compact 1U 8PoE 1HDD WizSense Network Video Recorder, part of Dahua's WizSense AI series. It combines on-board AI analytics (face detection & recognition, perimeter protection and Smart Motion Detection) across 8 channels with support for IP cameras up to 16 MP, giving installers a capable, easy-to-deploy recorder for homes, retail and commercial sites.
Key Features
- 8-channel WizSense network video recorder supporting IP cameras up to 16 MP
- Built-in AI by Recorder: Face detection; face recognition; perimeter protection; SMD
- AI by Camera support (with compatible Dahua cameras): Face detection/recognition; perimeter protection; SMD; ANPR; people counting; stereo analysis; heat map
- Decoding capability: 16x1080p@30fps or 4x8MP@30fps
- Network bandwidth: 256 Mbps in/rec/out (AI disabled)
- PoE: 8 ports, 10/100 Mbps, IEEE 802.3af/at
- Storage: 1 SATA, up to 20 TB (1 HDD bay, 20 TB per bay)
- Smart H.265+ / H.265 / Smart H.264+ / H.264 compression for efficient storage use
- Remote viewing and management via the Dahua DMSS app (iOS/Android) and web browser
Dimensions & Weight
| Product Dimensions (W x D x H) | 260 x 232.7 x 47.6 mm (W x D x H) |
| Net Weight | 0.92 kg |
| Gross Weight | 2.05 kg |
Full Specifications
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AI | |
| AI by Recorder | Face detection; face recognition; perimeter protection; SMD |
| AI by Camera | Face detection/recognition; perimeter protection; SMD; ANPR; people counting; stereo analysis; heat map |
| Perimeter Protection | |
| By Recorder (channels) | 2 channels, 10 IVS rules/channel |
| By Camera (channels) | All channels (8 targets/s) |
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| By Recorder (channels) | 1 channel (up to 12 images/s) |
| By Camera (channels) | All channels (8 targets/s) |
| Face Recognition | |
| Face Database Capacity | Up to 10 databases, 20,000 images, 2.5 GB total |
| Performance by Recorder | 8ch FD(cam)+FR(rec) 12 img/s; 1ch FD+FR(rec) 12 img/s |
| Performance by Camera (channels) | All channels (8 targets/s) |
| SMD Plus | |
| By Recorder (channels) | 4 channels |
| By Camera (channels) | All channels (16 targets/s) |
| Audio & Video | |
| Access Channel | 8 |
| Network Bandwidth (AI off) | 256 Mbps in/rec/out |
| Network Bandwidth (AI on) | 180 Mbps in/rec/out |
| Max Camera Resolution Supported | 16 MP |
| Decoding Capability (AI off, headline) | 16x1080p@30fps or 4x8MP@30fps |
| Video Output | 1 HDMI (4K) + 1 VGA |
| Multi-screen Display | 1/4/8/9 |
| Resolution List | 16/12/8/6/5/4/3MP;1080p;720p;960p;D1;CIF |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha/Samsung |
| Compression | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G.726 |
| Network | |
| Mobile Phone Access | iOS; Android (DMSS) |
| Interoperability | ONVIF 23.12 (Profile T/S/G); CGI; SDK |
| Browser Support | Chrome; IE9+/Edge; Firefox |
| Recording & Playback | |
| Multi-channel Playback | Up to 8 |
| Record Mode | General; motion detection; intelligent; alarm |
| Backup Method | USB device and network |
| Playback Mode | Instant, general, event, tag, smart playback |
| Storage | |
| Disk Group | Yes |
| Alarm | |
| General Alarm | Motion detection; privacy masking; video loss/local alarm; scene changing; PIR; IPC external alarm |
| Anomaly Alarm | Disk/storage error; disk full/low space; network disconnection; IP/MAC conflict; camera offline; video tampering; login lock; fan abnormal; cybersecurity exception |
| Intelligent Alarm | Face detection/recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map (+ video metadata/ANPR/crowd/vehicle density on 5-Series) |
| Alarm Linkage | Record; snapshot; alarm output; audio; buzzer; log; preset; email |

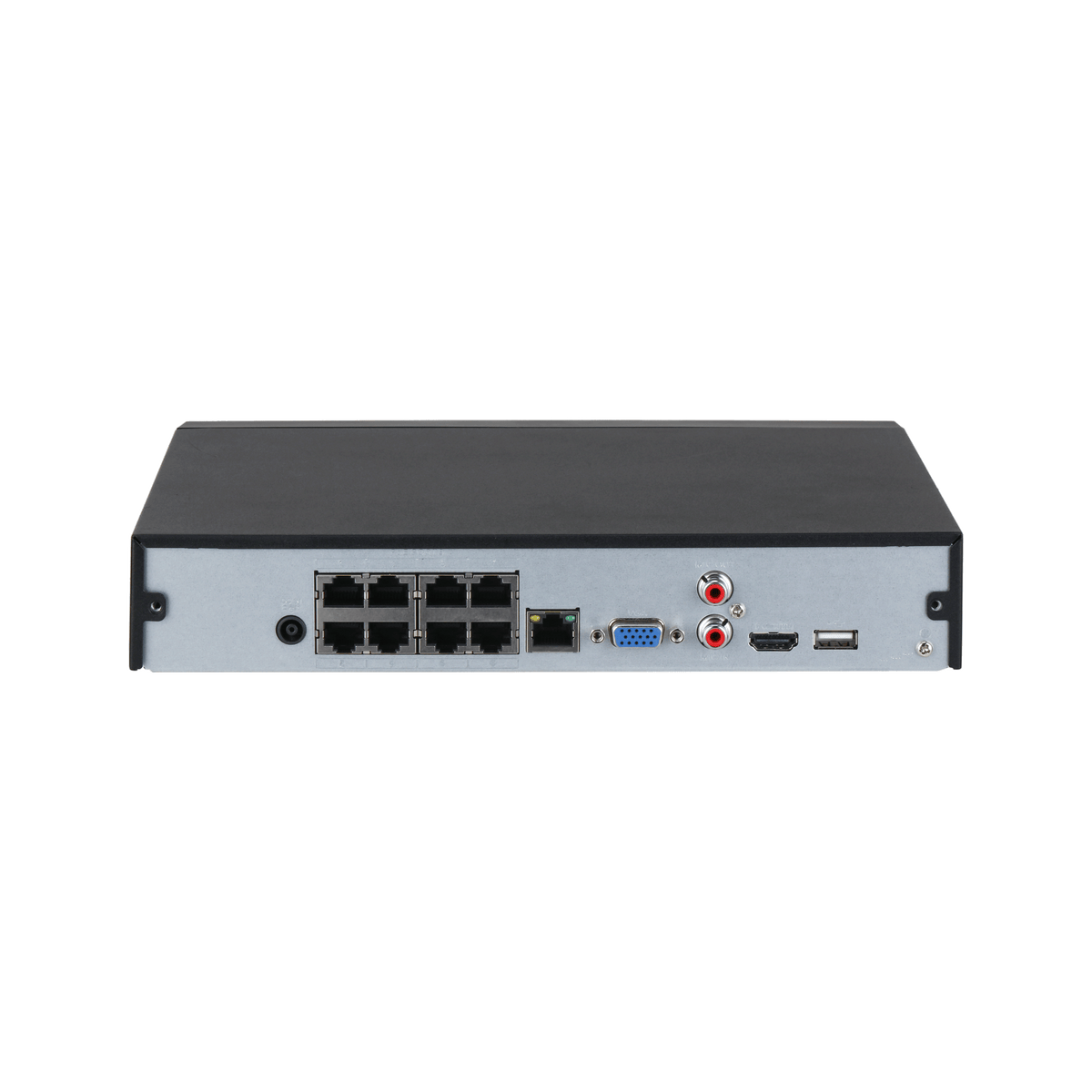

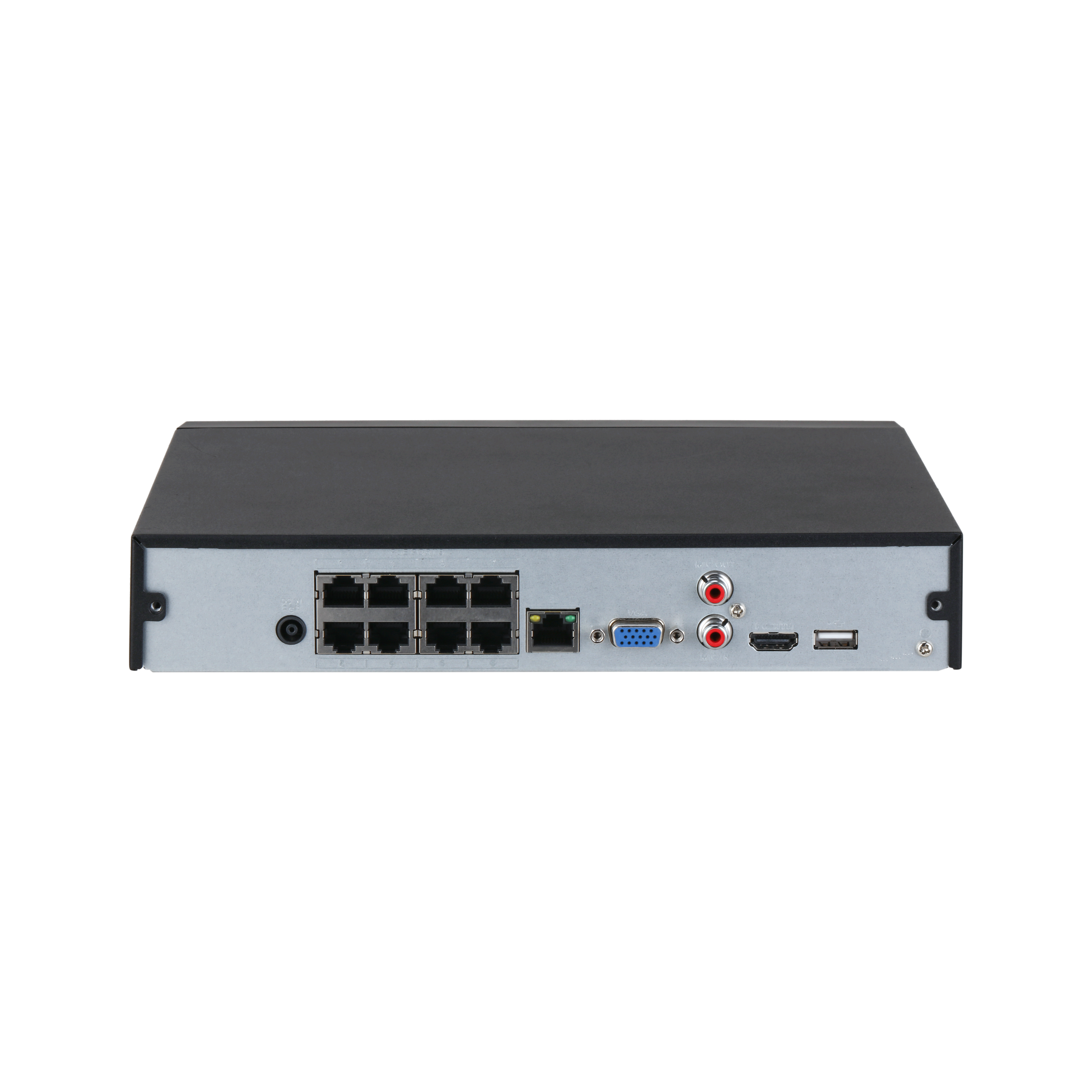

| Ports | |
| Audio Input / Output | 1-ch RCA / 1-ch RCA |
| Disk / HDD Interface | 1 SATA, up to 20 TB |
| USB | 2 (1 front USB2.0, 1 rear USB2.0) |
| HDMI / VGA | 1 / 1 |
| Network Port | 1x RJ-45 10/100/1000 Mbps |
| PoE Ports | 8 ports, 10/100 Mbps, IEEE 802.3af/at |
| General / Power | |
| Power Supply | 53 VDC, 1.812 A (external adaptor) |
| Power Consumption / PoE Budget | <10 W (no HDD); PoE total 78 W, 25.5 W/port max |
| Net Weight | 0.92 kg |
| Gross Weight | 2.05 kg |
| Product Dimensions (W x D x H) | 260 x 232.7 x 47.6 mm (W x D x H) |
| Packaging Dimensions | 372 x 117 x 308 mm (W x L x H) |
| Operating Temperature | -10C to +55C (14F to 131F) |
| Storage Temperature | -20C to +60C (-4F to 140F) |
| Operating Humidity | 10%-93% RH, non-condensing |
| Installation | Desktop |
| Certifications | FCC 47 CFR Part15 Subpart B Class A; CE-EMC (EN55032/EN61000-3-2/3/EN55035/EN50130-4); CE-LVD EN62368-1 |
Specifications sourced from Dahua's official Oceania product page for the NVR4108HS-8P-AI/ANZ. Sold as a base unit — hard disk drive(s) not included unless stated. Specifications are subject to change by the manufacturer without notice.
